Multinautic Sturdy Dock Hardware Kit and Floats For High Freeboard Semi-Floating Wood Dock

BEFORE ORDERING – Check with your local building/zoning authorities and neighbourhood association for permits and other requirements. Please note that this product will ship in multiple boxes with multiple tracking numbers.

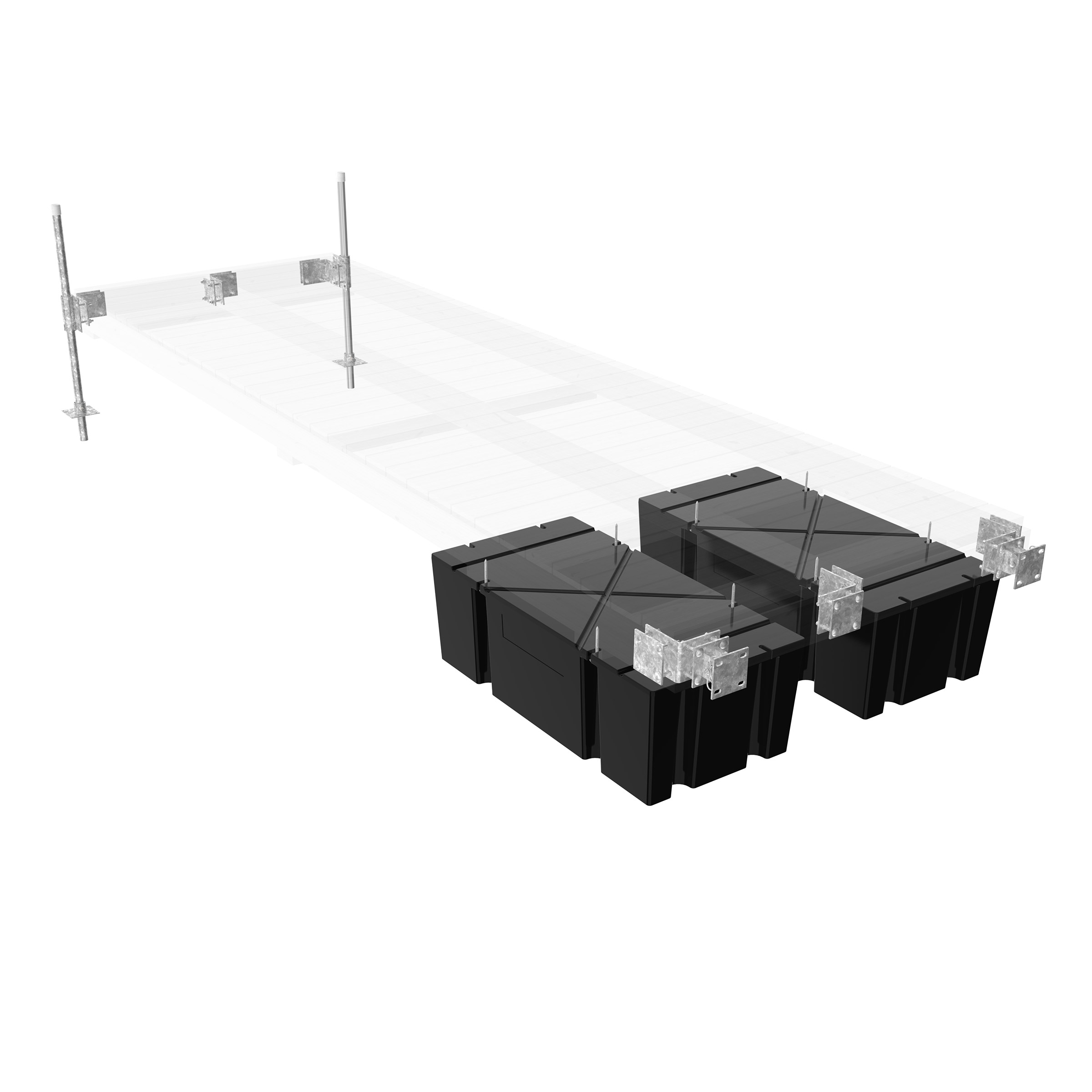

For over 20 years, Multinautic team has been dedicated to waterfront do-it-yourselfers and has concocted this high-freeboard semi-floating dock kit allowing access to a floating dock (the corresponding floating dock kit is item 19218). This page presents the kit to build the semi-floating gangway. It includes heavy-duty steel hardware, premium foam-filled floats and all the bolts and screws needed for assembly. It also includes steel posts for a start from the shoreline. If you wish to install this dock section without attaching it to a floating dock, you'll need to purchase the necessary anchoring hardware. Wood is not included in this kit.


Features:

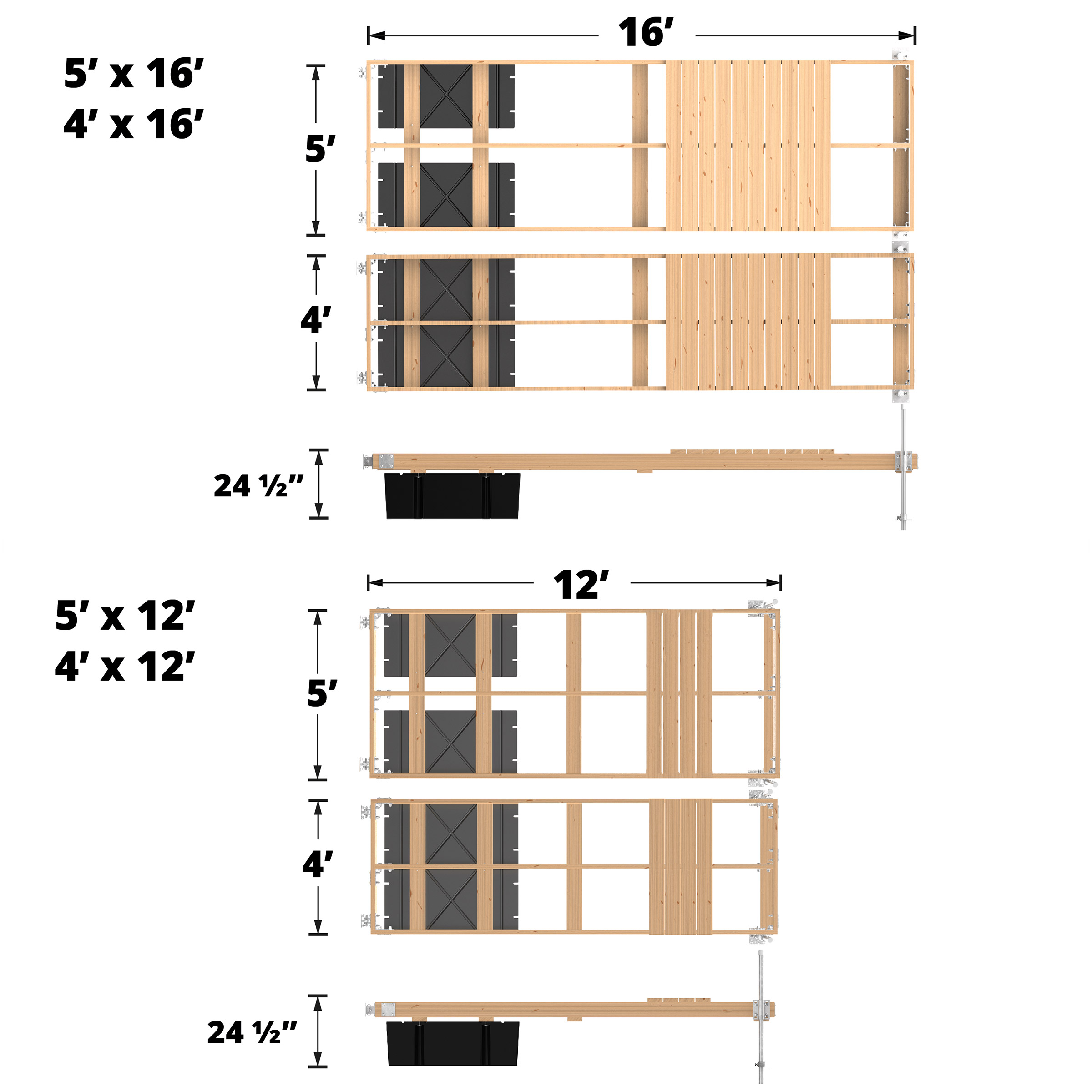

• We suggest 4 dock gangway sizes: 1.22 or 1.52 m by 3.66 or 4.88 m (4 or 5 ft. x 12 or 16 ft.)
• The Planning and Construction Guide on this page will help you configure your layout and the simple steps to follow to complete your project.
• The Specification Sheet gives details of the wood to be sourced locally.

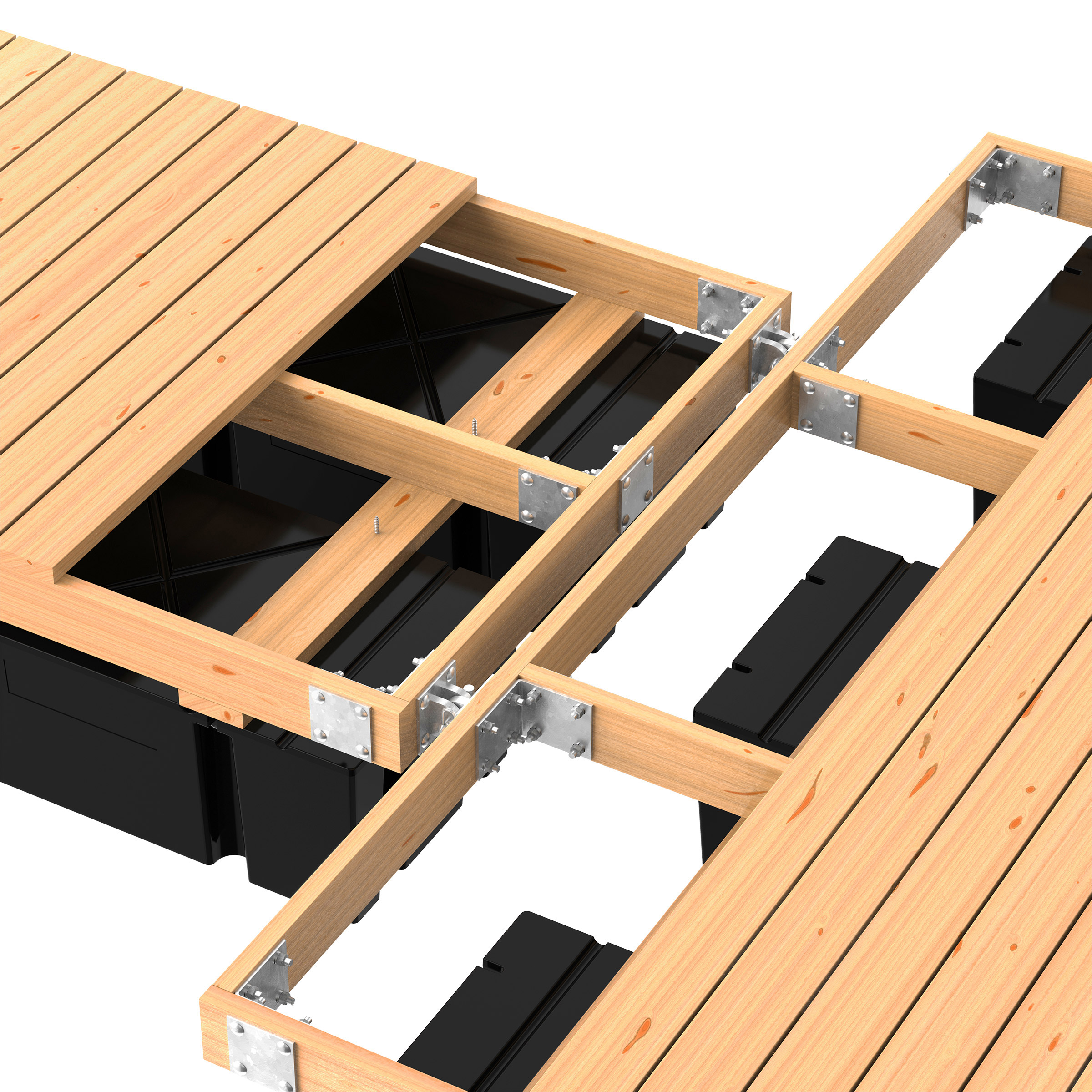

• This semi-floating ramp is designed to be attached to a floating dock (see the page presenting item No.204934).

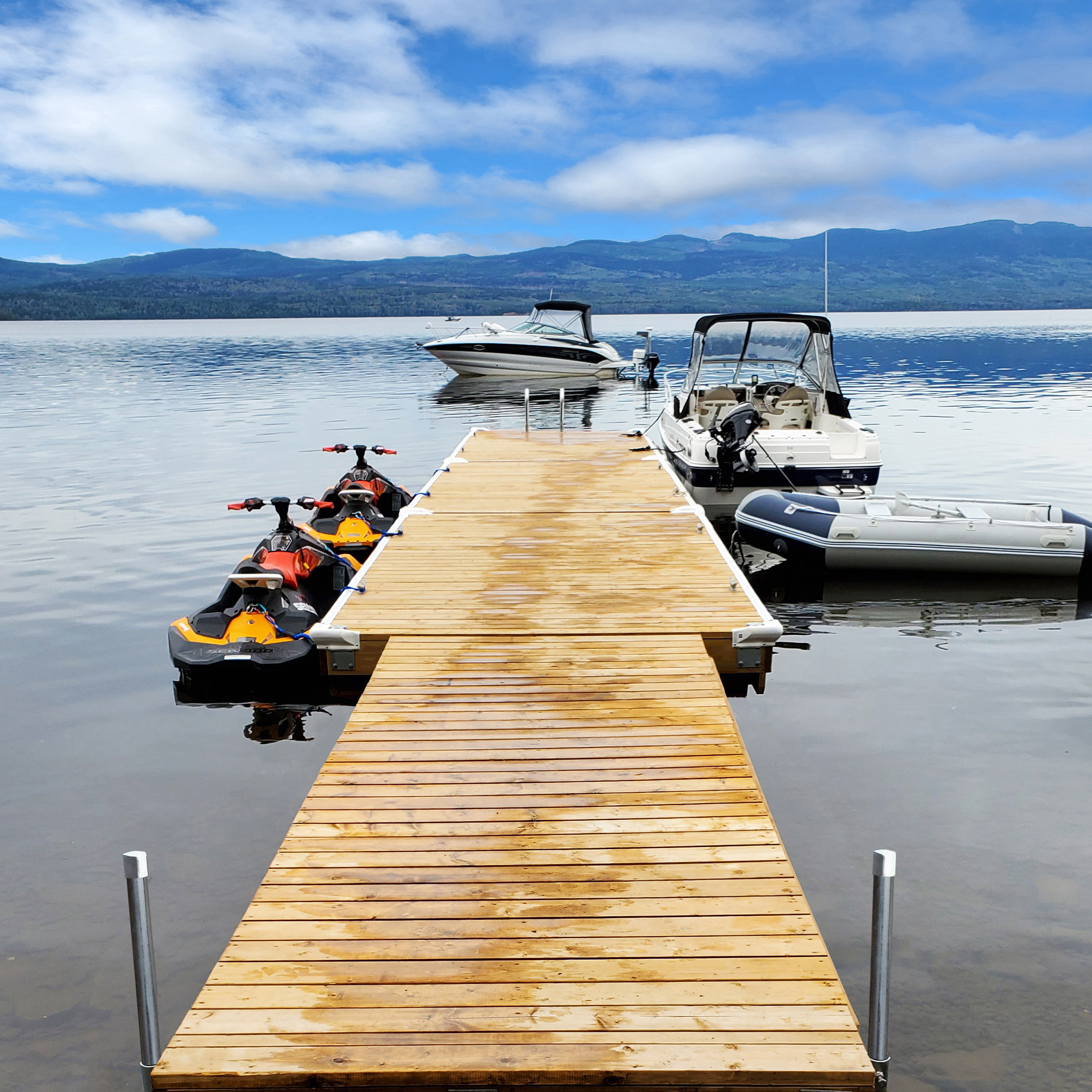

• This dock creates a smooth transition between shoreline and the floating dock, and because one extremity is linked to shoreline, while the other end is on floats, it will automatically adjust to water level fluctuations of up to 1 m (3 ft.)
• This kit can also be converted into a full floating dock, by adding two R-600 floats (item 1350418, Model 14018)


Includes:

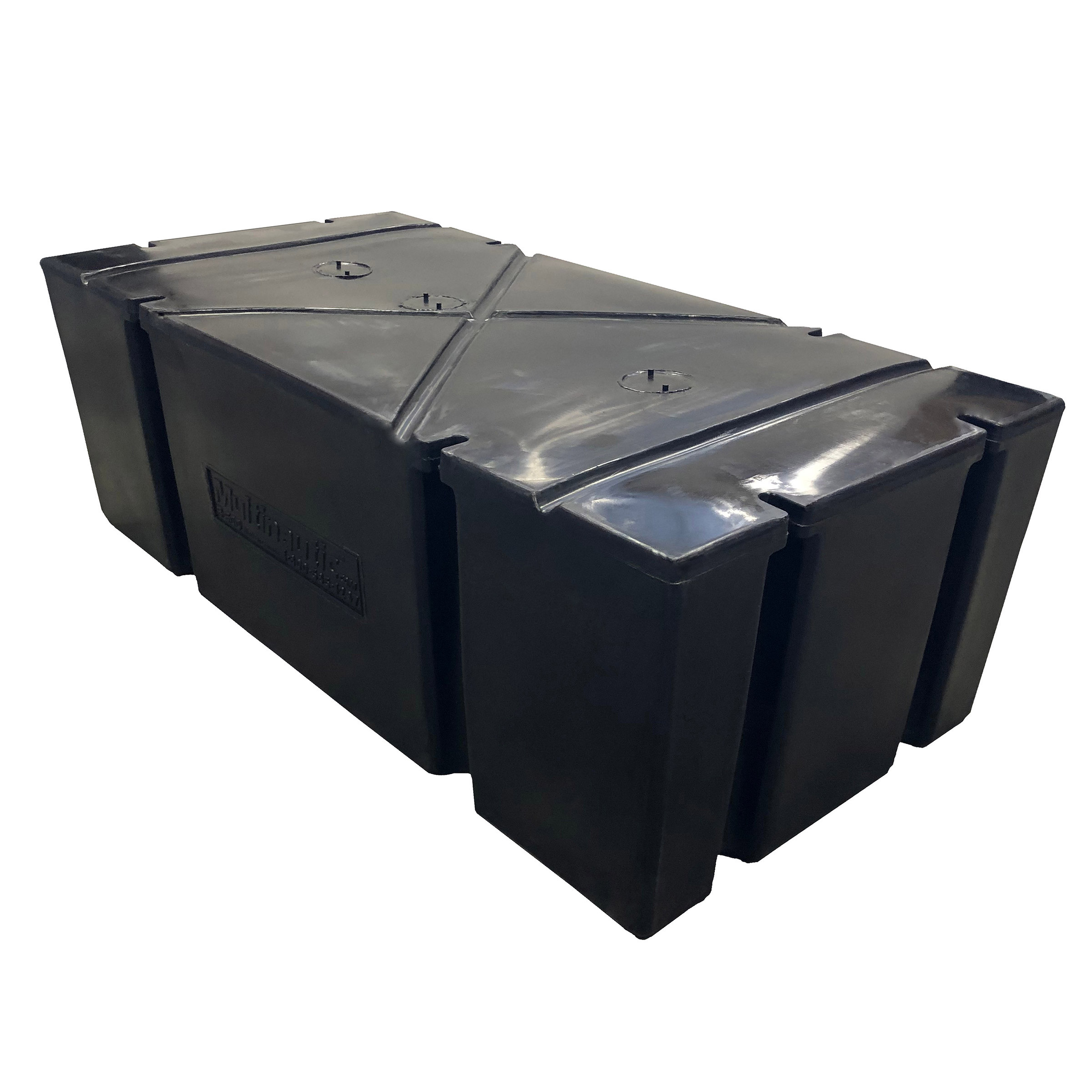

• Expanded foam-filled dock floats, 61 cm x 121.9 cm x 40.6 cm (24 in. x 48 in. x 16 in.) (2x);
• Lag screws with large flat washers for floats (8x);
• Inside corners 15.2 cm x 12.7 cm x 0.6 cm (6 in. x 5 in. x 1/4 in.) (6x);
• Reinforcement plates 12.7 cm x 12.7cm x 0.6 cm (5 in. x 5 in. x 1/4 in.) (10x);

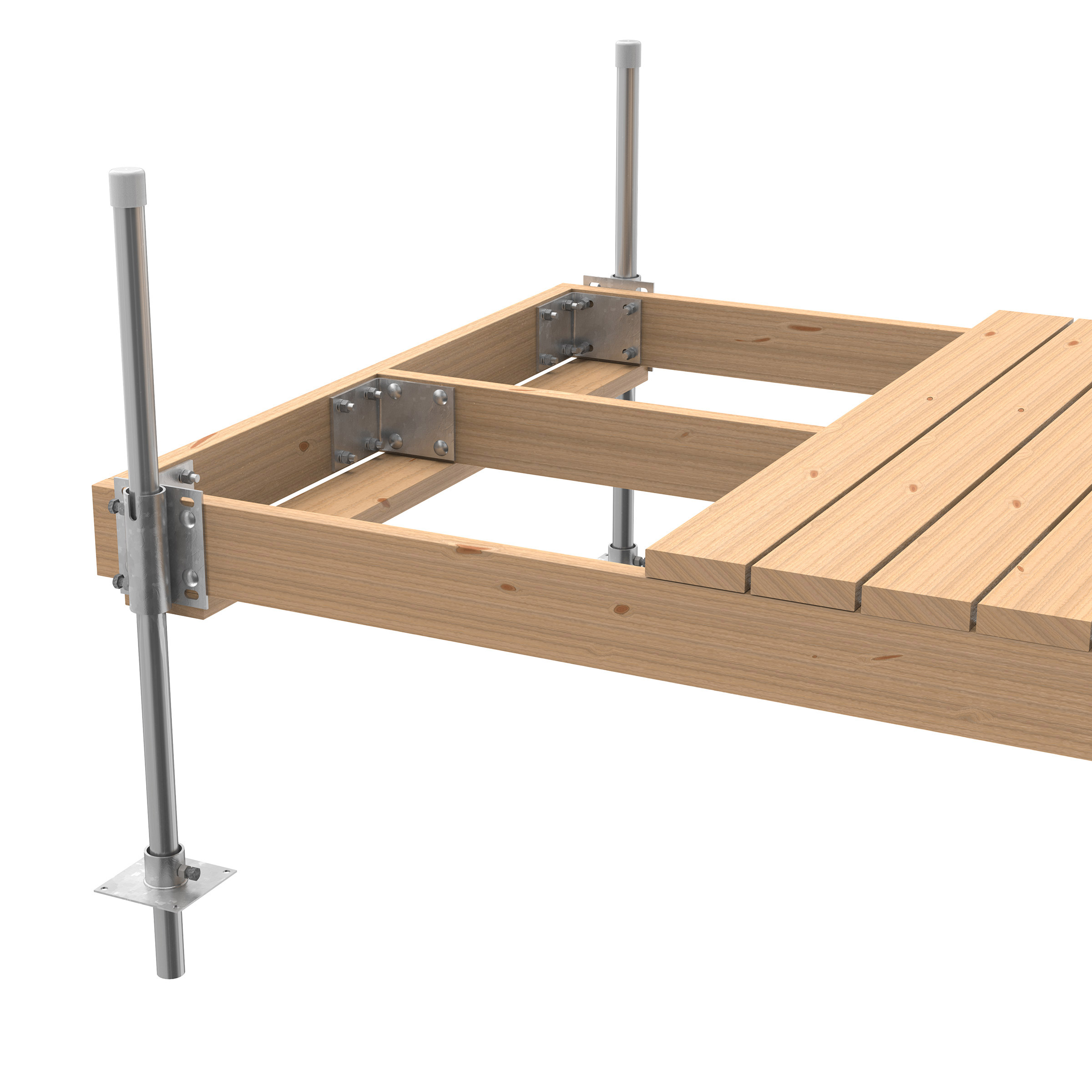

• Steel post 1.22 m. x 4.26 cm O.D.(4 ft. x 1 11/16 in. O.D.) (2x)
• Base plates 15.24 cm x 15.24 cm x 5.4 cm (6 in. x 6 in. x 2 1/8 in.) (2x)
• Leg holders 15,24 cm x 17,78 cm x 4,8 mm (6 po x 7 po x 3/16 po) (2x);
• Safety pile caps (2x)
• Heavy-duty dock hinges 12.7 cm x 12.7 cm x 0.6 cm (5 in. x 5 in. x 1/4 in.) with 1.27 cm (1/2 in.) thick female tabs and 1.9 cm (3/4 in.) male tab, connected by a 1.9 cm (3/4 in.) diameter pin (2x);
• Carriage bolts, lock washers and nuts for steel hardware (48x);
• Wood screws No.10 x 8.9 cm (3 1/2 in.) (150x)

Specifications:

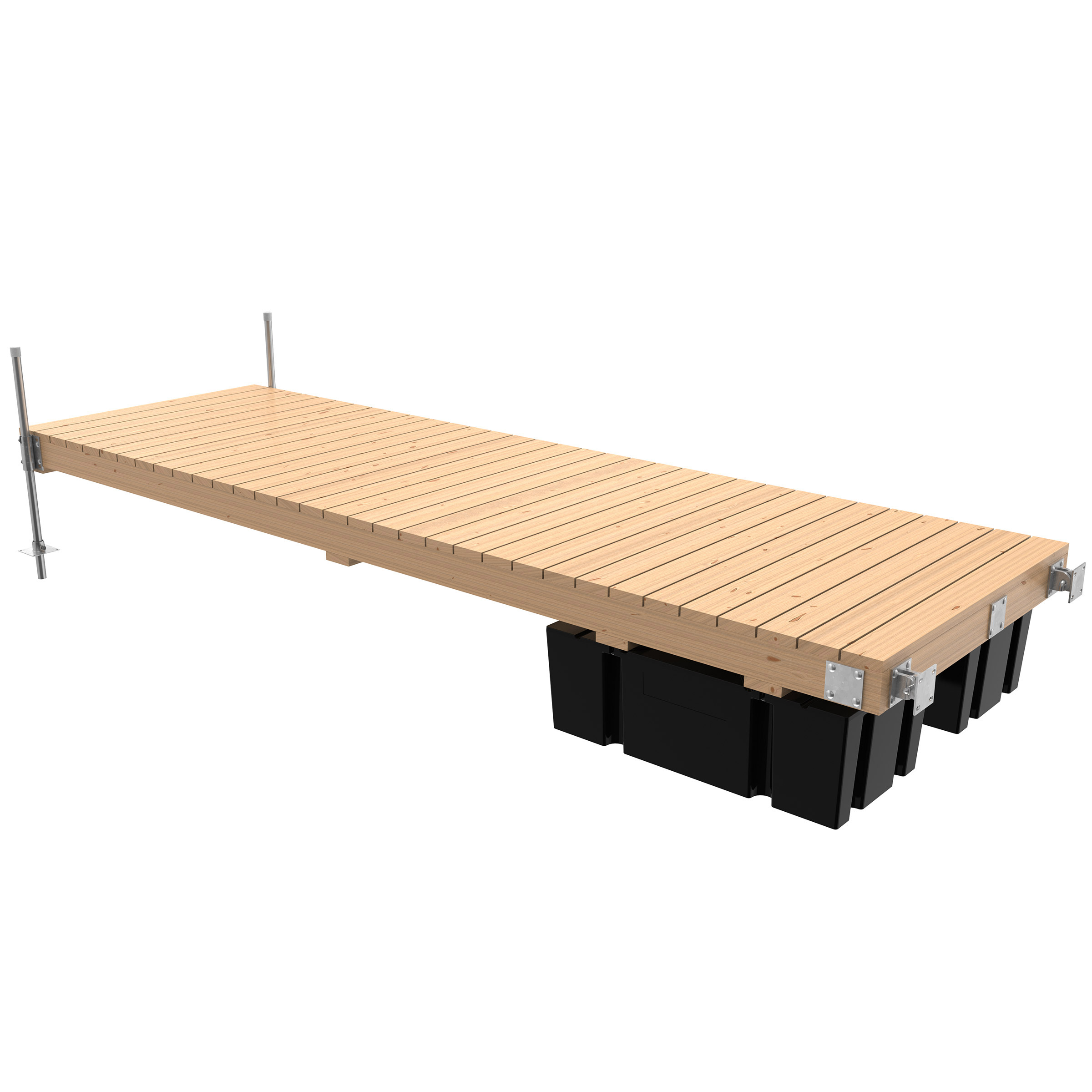

• Dimensions (L x W x H): 4.9 m x 1.52 m x 67.3 cm (16 ft. x 5 ft. x 25 in.)
• Weight: 254 kg (560 lb.) with lumber

Warranty

• 3 years

For more information about this product, call Multinautic® Customer Service Centre at 1-800-585-1237, or email info@multinautic.com.
